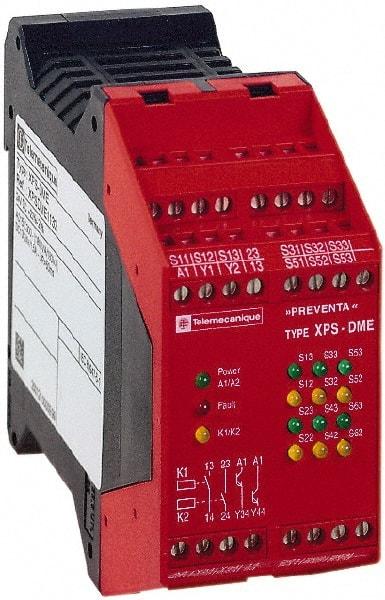

Schneider Electric - 24 VDC, Electromechanical & Solid State Screw Clamp General Purpose Relay - 6 Amp at 28 VDC, 45mm Wide x 99mm High x 114mm Deep
Item #: 69676534
Brand: Schneider Electric
Model #: XPSDME1132
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Relay Form | Electromechanical; Solid State |
| Control Circuit Voltage | 24 VDC |
| Terminal Type | Screw Clamp |
| Amperage | 6 @ 28 VDC |
| Maximum Power Rating (W) | 3.50 |
| Overall Height (mm) | 99 |
| Overall Height (Decimal Inch) | 3.8900 |
| Overall Width (mm) | 45 |
| Overall Width (Decimal Inch) | 1.7700 |
| Overall Depth (mm) | 114 |
| Overall Depth (Decimal Inch) | 4.4900 |
| Standards Met | CSA; EN 1088/ISO 14119; EN/IEC 60204-1; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-3; PLe/Category 4 Conforming to EN/ISO 13849-1; SILCL 3 Conforming to EN/IEC 62061; TUV; UL Recognized |
