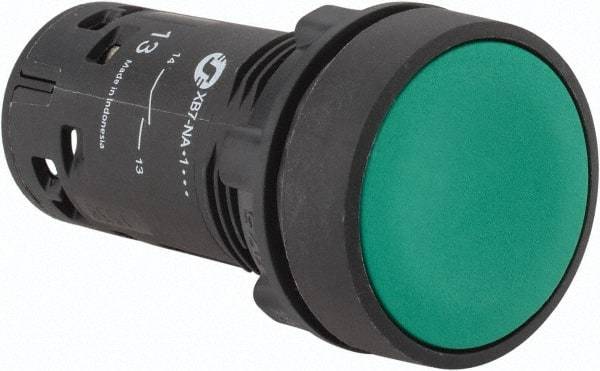

Schneider Electric - 22mm Mount Hole, Flush, Pushbutton Switch Only - Round, Green Pushbutton, Nonilluminated, Momentary (MO), Shock and Vibration Resistant
Item #: 69676880
Brand: Schneider Electric
Model #: XB7NA31
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches are designed with the front side of the switch outfacing on the panel. Used in conjunction with a contact block, these switches are designed to activate machinery by button that is pressed and released. Applications include starting and stopping the machine.
Nonilluminated pushbuttons do not feature a light within the button.They are commonly used in areas where added light is not needed.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 22 |
| Switch Type | Pushbutton Switches Only |
| Pushbutton Type | Flush |
| Pushbutton Shape | Round |
| Pushbutton Color | Green |
| Operator Illumination | NonIlluminated |
| Operation Type | Momentary (MO) |
| Amperage | 4 |
| Voltage | 240/120 VAC; 250/125 VDC |
| Contact Configuration | NO |
| Terminal Type | Screw Clamp |
| NEMA Rating | 3; 12 |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Standards Met | CSA C22.2 No. 14; EN/IEC 60947-1; EN/IEC 60947-5-1; JIS C 4520; UL 508 |
