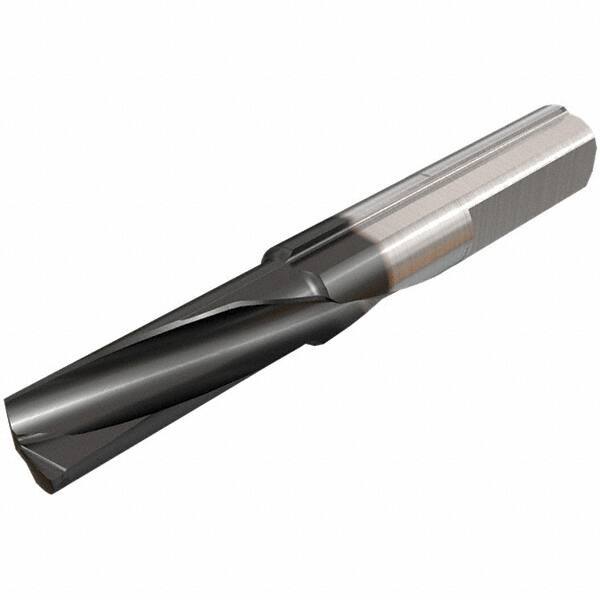

Iscar - 4mm Min Bore Diam, 8mm Max Bore Depth, 6mm Shank Diam, Helical Boring Bar - 0.2mm Corner Radius, Left Hand Cut, Solid Carbide, TiAlN Finish
Item #: 69740942
Brand: Iscar
Model #: 5530111
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Helical boring bars are used for cutting uniform and long edges.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.1575 |
| Minimum Bore Diameter (mm) | 4.00 |
| Maximum Bore Depth (Decimal Inch) | 0.3150 |
| Maximum Bore Depth (mm) | 8.00 |
| Material | Solid Carbide |
| Boring Bar Type | Helical |
| Shank Diameter (mm) | 6.0000 |
| Overall Length (mm) | 30.00 |
| Cutting Direction | Left Hand |
| Finish/Coating | TiAlN |
| Corner Radius (mm) | 0.20 |
| Manufacturer Grade | IC908 |
