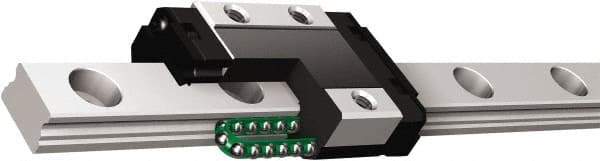

THK - 43mm Block L x 32mm W x 13.3mm H, 20mm Transverse Hole Spcg, 25mm Lateral Hole Spcg, 2-Row Mini SRS7GM Assembly - M3x3.5 Block Hole, 310mm Rail L x 15mm W x 9.5mm H, 16mm Assembly H, 0mm Overhang
Item #: 69855609
Brand: THK
Model #: SRS15GMUU+310LM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Row Miniature Type SRS7GM |
| Block Length (mm) | 43.00 |
| Block Width (mm) | 32.00 |
| Block Height (mm) | 13.30 |
| Block Transverse Hole Spacing (mm) | 20.00 |
| Block Lateral Hole Spacing (mm) | 25.00 |
| Block Hole Size | M3x3.5 |
| Rail Length (mm) | 310.00 |
| Rail Width (mm) | 15.000 |
| Rail Height (mm) | 9.500 |
| Assembly Height (mm) | 16.00 |
| Block Overhang (mm) | 0.00 |
| Rail Bolt Spacing (mm) | 40.00 |
| Static Load Rating (kN) | 5.720 |
| Dynamic Load Capacity (kN) | 5.590 |
