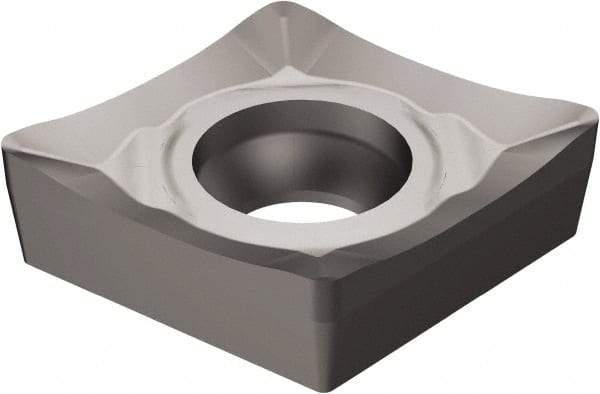

Sandvik Coromant - CCGX32.51 AL Grade H10 Carbide Turning Insert - Diamond Finish, 80° Parallelogram, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 69924538
Brand: Sandvik Coromant
Model #: 5723239
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGX |
| Insert Size | 32.51 |
| Material | Carbide |
| Length (mm) | 9.27 |
| Length (Decimal Inch) | 0.3650 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | H10 |
| Coating | Diamond |
| Chip Breaker | AL |
| Insert Length (Decimal Inch) | 0.3650 |
| OverallLength (mm) | 9.67 |
| Overall Length (Decimal Inch) | 0.3808 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1563 |
| ISO Number | CCGX 09 T3 04-AL H10 |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | CCGX 09 T3 04-AL H10 |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 9.27 |
| Maximum Depth of Cut (Decimal Inch) | 0.3650 |
| Insert Holding Method | Screw |
| Cutting Width (mm) | 9.27 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Parallelogram |
