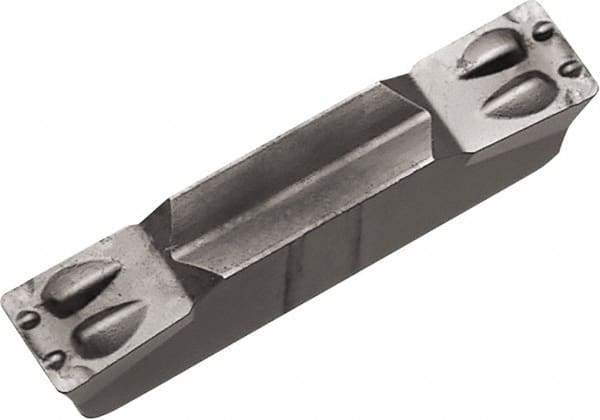

Kyocera - 3015040GMM V Grade PR930, 3mm Cutting Width Carbide Grooving Insert - 0.492" Max Depth of Cut, Neutral, 1/64" Corner Radius, TiCN Finish
Item #: 70222161
Brand: Kyocera
Model #: 8819842
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GMM |
| Insert Size | 3015040 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Chipbreaker | V |
| Multi-Use Tool | No |
| Corner Radius (Inch) | 1/64 |
| Coating Process | PVD |
| Overall Length (mm) | 15.50 |
| Series | KGM |
| Rake | Positive |
| ISO Number | GMM3015-040V |
| Insert Thickness (Decimal Inch) | 0.0906 |
