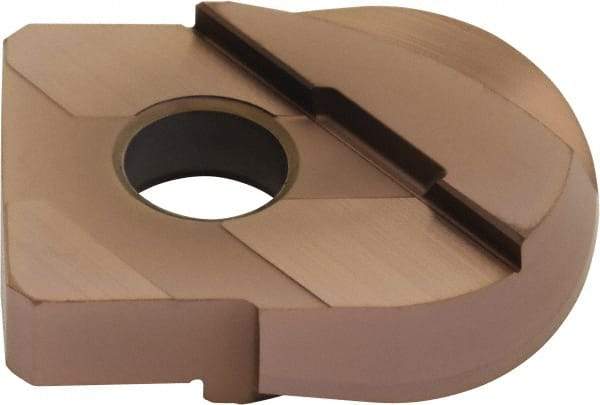

Sumitomo - ZPGU.S2.5 Grade ACZ120 Carbide Milling Insert - TiN/AlN Finish, 0.24" Thick, 5/8" Inscribed Circle, 5/16" Corner Radius
Item #: 70641832
Brand: Sumitomo
Model #: 14DVW47
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ZPGU.S |
| Insert Size | 2.5 |
| Material | Carbide |
| Manufacturer's Grade | ACZ120 |
| Coating | TiN/AlN |
| Length (Decimal Inch) | 0.8050 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2400 |
| Corner Radius (Decimal Inch) | 0.3125 |
| Shape | Ball Nose Rounded Tip |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Cutter Series Compatibility | WBMR |
