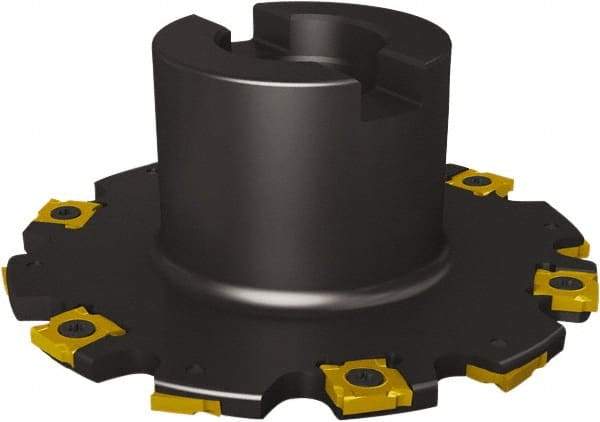

Seco - Shell Mount Connection, 0.1969" Cutting Width, 0.8819" Depth of Cut, 80mm Cutter Diam, 0.8661" Hole Diam, 4 Tooth Indexable Slotting Cutter - R335.19 Toolholder, SNHQ 1103 Insert, Right Hand Cutting Direction
Item #: 70707997
Brand: Seco
Model #: 66089
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 22.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.8819 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 4 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1103 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 13200 |
| Minimum Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Cutting Width (mm) | 5.00 |
| Hub Diameter (mm) | 40.00 |
| Hub Diameter (Decimal Inch) | 1.5748 |
| Radius | No |
| Rake | Negative |
| Complete Insert Compatibility1 | SNHQ 110302EL4-E05; SNHQ 110302ER4-E05; SNHQ 110302TL4-M07; SNHQ 110302TR4-M07; SNHQ 110304TL4-M07; SNHQ 110304TR4-M07; SNHQ 110308TL4-M07; SNHQ 110308TR4-M07; SNHQ 110312TL4-M07; SNHQ 110312TR4-M07; SNHQ 110316TL4-M07; SNHQ 110316TR4-M07; SNHQ 110320TL4- |
