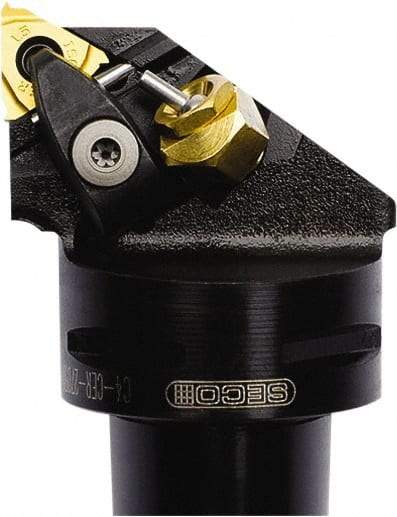

Seco - External Thread, Right Hand Cut, 62.99mm Shank Width x 62.99mm Shank Height Indexable Threading Toolholder - 22ER Insert Compatibility, CE Toolholder, Series Snap Tap
Item #: 71138291
Brand: Seco
Model #: 21736
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 62.99 |
| Shank Width/Diameter (Decimal Inch) | 2.4800 |
| Shank Height (mm) | 62.99 |
| Shank Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | 22ER |
| Series | Snap Tap |
| Toolholder Style | CE |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 45.01 |
| Center to Cutting Edge (Decimal Inch) | 1.7720 |
| Head Length (mm) | 65.00 |
| Head Length (Decimal Inch) | 2.5590 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
