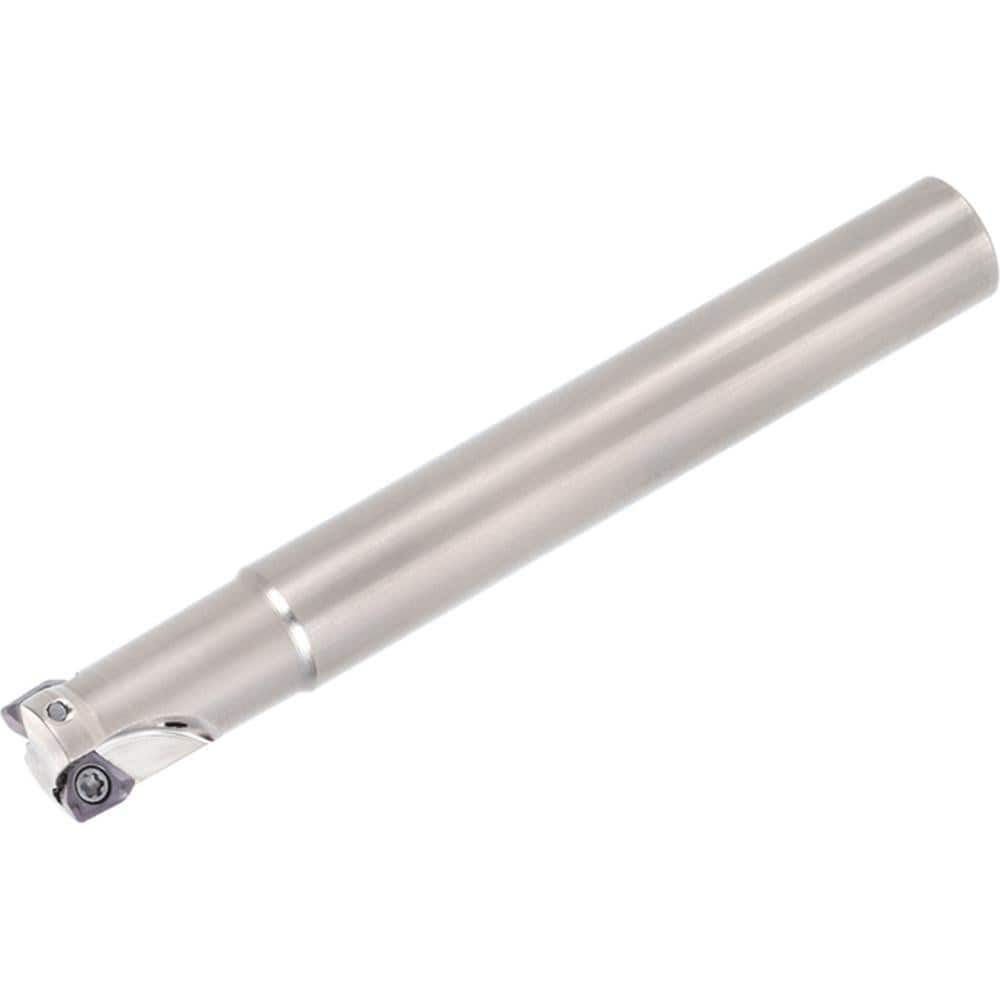

Indexable Square-Shoulder End Mill: EPA04R008M08.0-01, 8.0000'' Shank Dia, Straight Shank Uses 1, Normal Pressure, 60.00 mm OAL
Item #: 71208094
Brand: Tungaloy
Model #: 6839338
Product Specifications
| Minimum Cutting Diameter (mm) | 8.00 |
| Maximum Cutting Diameter (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 3.50 |
| Cutter Style | EPA |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 8.0000 |
| Shank Diameter (Inch) | 8 |
| Maximum Ramping Angle | 0.3 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 60.00 |
| Tool Material | Steel |
| Series | EPA |
| Lead Angle | 90 |
| Shank Length (mm) | 48.00 |
| Head Length (mm) | 12.00 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 60.000 |
| Number Of Flutes | 1 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | Normal Pressure |
