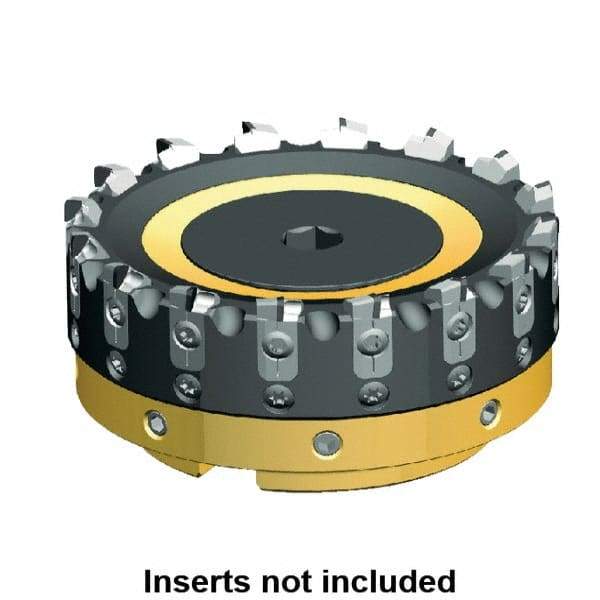

Kennametal - 10 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 3mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, Series AluMill
Item #: 71535983
Brand: Kennametal
Model #: 2881349
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | AluMill |
| Maximum Depth of Cut (mm) | 3.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Cutter Style | KSCM |
| Number of Flutes | 10 |
| Hub Diameter (mm) | 63.00 |
| Hub Diameter (Decimal Inch) | 2.4803 |
| Maximum Body Diameter (Decimal Inch) | 3.0906 |
| Number of Adjustable Pockets | 10 |
| Maximum RPM | 29900 |
