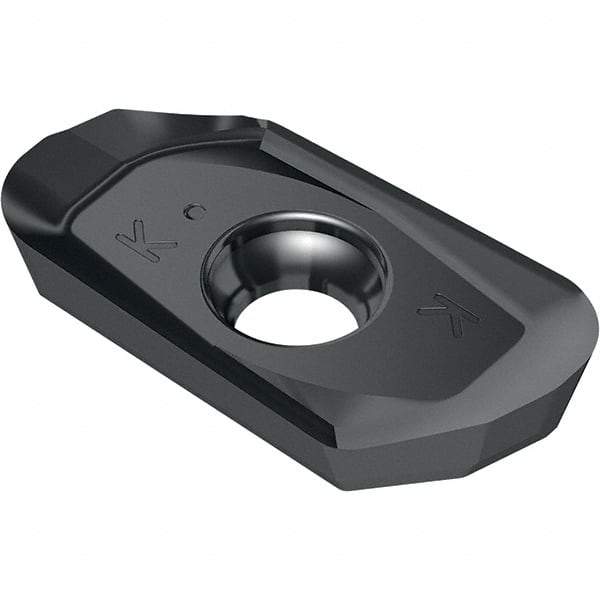

Walter - ZDGT150412 K85 Grade WXN15 Carbide Milling Insert - TiCN Plus Finish, 0.1874" Thick, 1.2mm Corner Radius
Item #: 71719199
Brand: Walter
Model #: 5024077
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ZDGT |
| Insert Size | 150412 |
| Material | Carbide |
| Material Grade | N15 |
| Manufacturer's Grade | WXN15 |
| Coating | TiCN Plus |
| Width (Decimal Inch) | 0.4134 |
| Length (Decimal Inch) | 0.6378 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | K85 |
| Manufacturers Catalog Number | ZDGT150412R-K85 |
