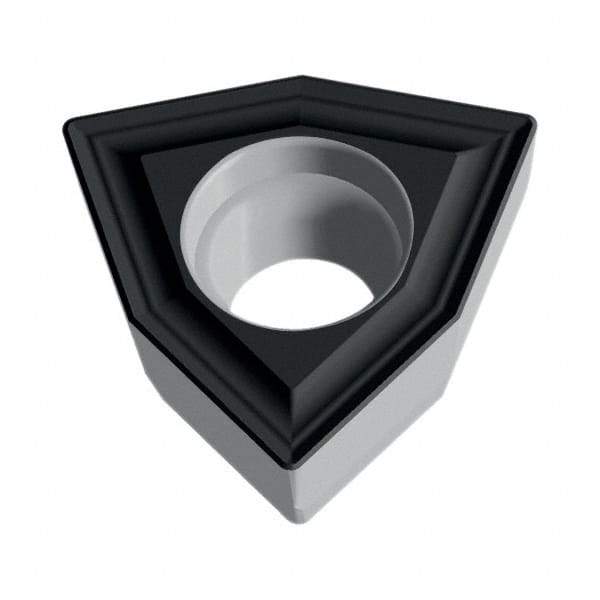

Walter - WOMX030204 D57 Grade WXP40 Carbide Indexable Drill Insert - TiCN Finish, Trigon, 5mm Inscribed Circle
Item #: 71723985
Brand: Walter
Model #: 5033094
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | WOMX |
| Insert Size | 030204 |
| Material | Carbide |
| Material Grade | P40/M30/S30 |
| Manufacturer's Grade | WXP40 |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness (mm) | 2.38 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (mm) | 3.31 |
| Length (Decimal Inch) | 0.1303 |
| Coating | TiCN |
| Coating Process | PVD |
| Chipbreaker | D57 |
