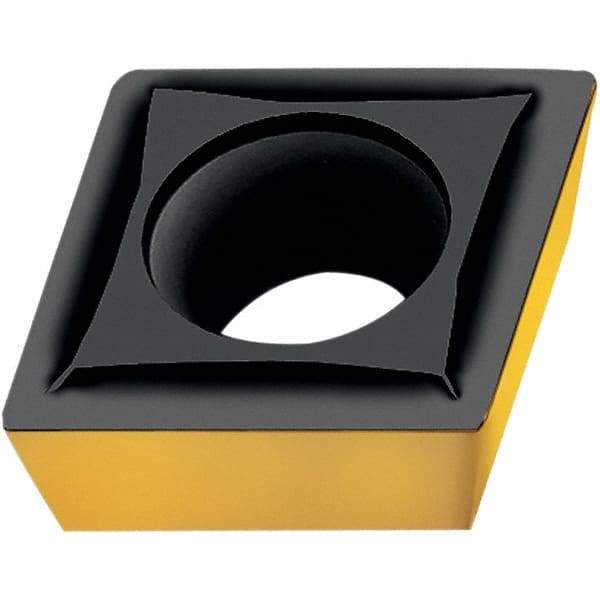

Walter - CPGT730.5 PF5 Grade WAK10 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 7/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 71749550
Brand: Walter
Model #: 5022013
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPGT |
| Insert Size | 730.5 |
| Material | Carbide |
| Length (Decimal Inch) | 0.2220 |
| Inscribed Circle (Decimal Inch) | 0.8750 |
| Inscribed Circle (Inch) | 7/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | WAK10 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | K10/H30 |
| Chip Breaker | PF5 |
| ISO Number | CPGT050202-PF5 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CPGT73.5-PF5 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | H |
| Included Angle | 80 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 1.98 |
| Maximum Depth of Cut (Decimal Inch) | 0.0780 |
| Insert Holding Method | Screw |
| MultiUseTool | Yes |
| Shape | Diamond |
