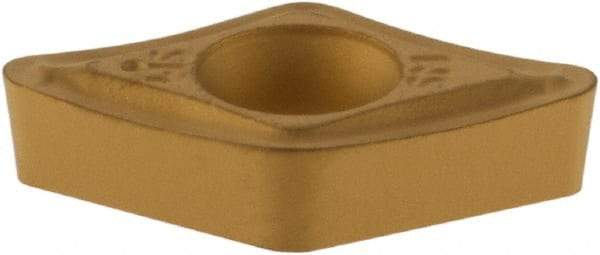

Iscar - DCMT2-2 SM Grade IC9250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 71756977
Brand: Iscar
Model #: 5507291
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 2-2 |
| Material | Carbide |
| Length (mm) | 7.70 |
| Length (Decimal Inch) | 0.3031 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | IC9250 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | C5/C6/C7 |
| Chip Breaker | SM |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 55 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| Shape | Diamond |
