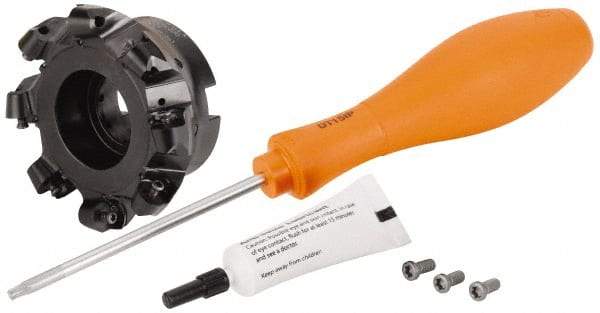

Kennametal - 101.6mm Cut Diam, 8mm Max Depth, 1-1/4" Arbor Hole, 8 Inserts, RP.T 1605... Insert Style, Indexable Copy Face Mill - BMD400 Cutter Style, 16,600 Max RPM, 2 High, Through Coolant, Series KSRM
Item #: 71956387
Brand: Kennametal
Model #: 4043054
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | KSRM |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RP.T 1605... |
| Cutter Style | BMD400 |
| Through Coolant | Yes |
| Maximum RPM | 16600 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.8750 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RP.T 1605M0.. |
