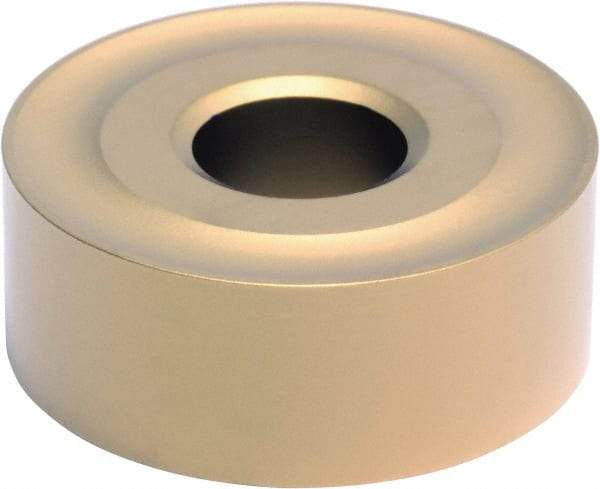

Sumitomo - RNMG86 ENY Grade AC830P Carbide Turning Insert - Al2O3 Finish, Round, 1" Inscr Circle, 3/8" Thick
Item #: 71966154
Brand: Sumitomo
Model #: 19RBW76
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNMG |
| Insert Size | 86 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Manufacturer's Grade | AC830P |
| Coating | Al2O3 |
| Chip Breaker | ENY |
| Hole Diameter (Decimal Inch) | 0.3622 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Insert Holding Method | Pin & Clamp |
| Shape | Round |
