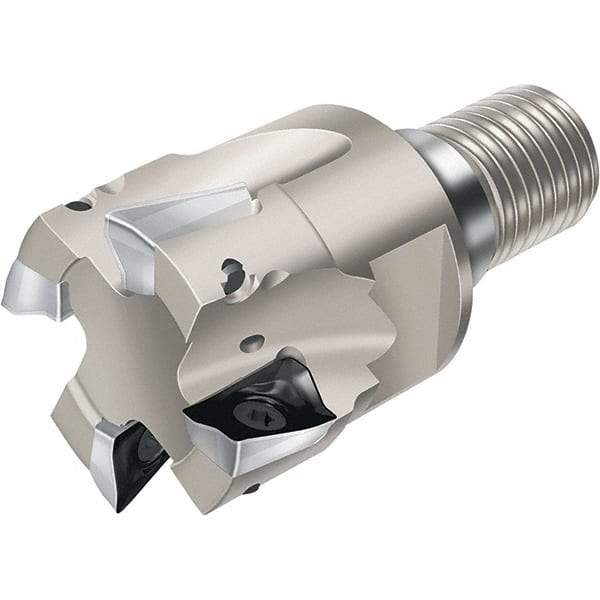

Walter - 20mm Cut Diam, 8mm Max Depth of Cut, Indexable Square Shoulder End Mill - Multiple Insert Styles, T18 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 71970362
Brand: Walter
Model #: 5045283
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Modular Connection |
| Modular Connection Size | T18 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F4042 |
| Number of Flutes | 3 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Insert Compatibility | ADGT 0803PER-D51; ADGT 0803PER-D56; ADGT 0803PER-F56; ADHT 0803PER-G88; ADKT0803PER-F56; ADMT 080302R-F56; ADMT 080304R-D56; ADMT 080304R-F56; ADMT 080304R-G56; ADMT 080308R-F56; ADMT 080312R-F56; ADMT 080316R-F56; ADMT 080320R-F56; ADMT 080325R-F56 |
| Shank Length (Decimal Inch) | 0.8268 |
| Shank Length (mm) | 21.00 |
