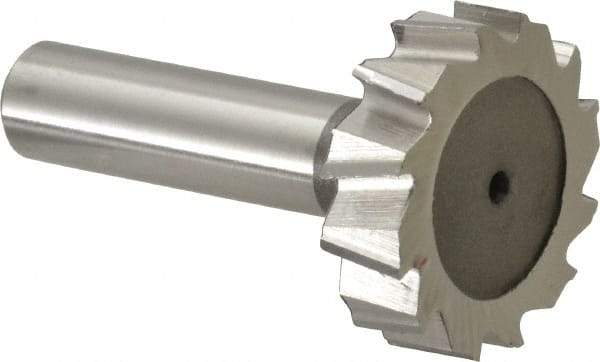

Keo - 1-3/8" Diam x 3/8" Face Width, High Speed Steel, 12 Teeth, Shank Connection Woodruff Keyseat Cutter - Uncoated, 2-3/8" OAL x 1/2" Shank, Staggered Teeth, ANSI 1211, Old Standard F
Item #: 72468432
Brand: Keo
Model #: 62115
Exact Tooling IR#: 04
Features and Benefits
Staggered tooth cutters are used at higher speeds for larger and deeper cutting operations. They have fewer teeth than straight cutters for better chip removal from the workpiece.
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Old Standard Number | F |
| American Standard Number (ANSI) | 1211 |
| Cutting Diameter (Inch) | 1-3/8 |
| Cutting Diameter (Decimal Inch) | 1.3750 |
| Cutting Width (Inch) | 3/8 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Tooth Configuration | Staggered |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 2-3/8 |
| Number of Teeth | 12 |
| Cutting Dia. Oversized for Resharpening | No |
| Weldon Flat | No |
