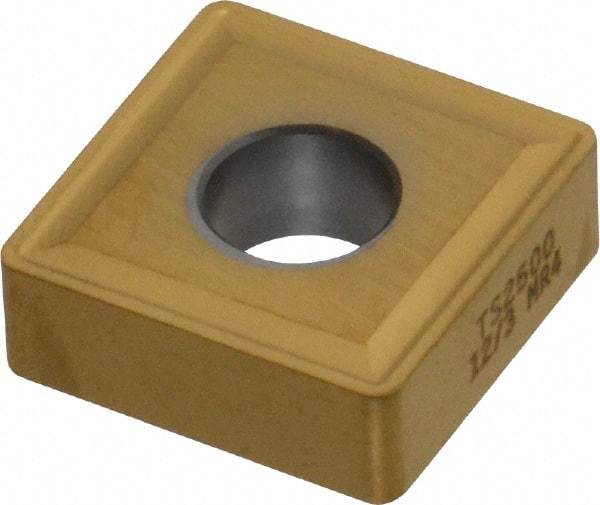

Seco - SNMG643 MR4 Grade TS2500 Carbide Turning Insert - TiAlN/TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 72494099
Brand: Seco
Model #: 39057
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 643 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | TS2500 |
| Coating | TiAlN/TiN |
| Material Grade | C5 |
| Chip Breaker | MR4 |
| Hole Diameter (Decimal Inch) | 0.3130 |
| ISO Number | SNMG643 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Included Angle | 90 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
