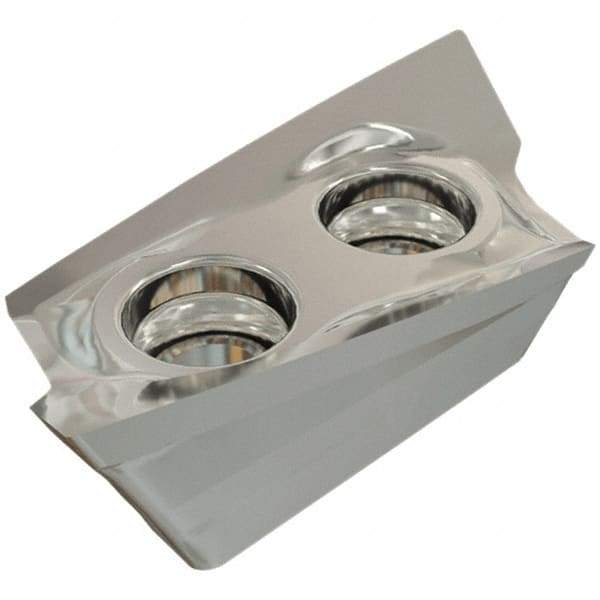

Iscar - HP ADCR220750 P Grade IC28 Carbide Milling Insert - Uncoated, 0.295" Thick, 5mm Corner Radius
Item #: 72928146
Brand: Iscar
Model #: 5695483
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HP ADCR |
| Insert Size | 220750 |
| Material | Carbide |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.9567 |
| Thickness (Decimal Inch) | 0.2950 |
| Corner Radius (Decimal Inch) | 0.1970 |
| Corner Radius (mm) | 5.00 |
| Relief Angle | 15.000 |
| Rake Angle | 27 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 21.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.8504 |
| ISO Number | HP ADCR 220750PDFR-P LM |
