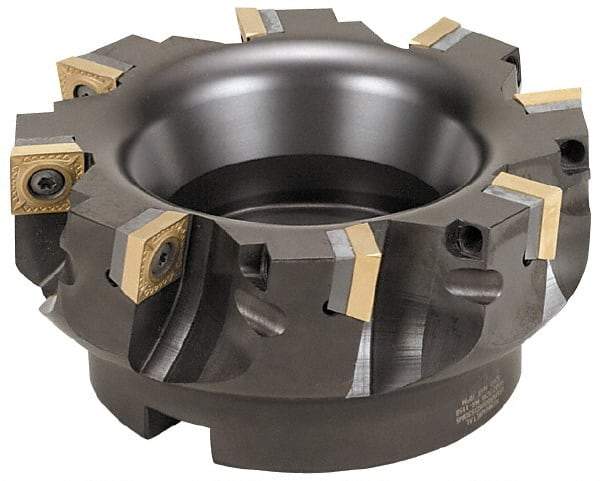

Kennametal - 10 Inserts, 4" Cut Diam, 1-1/4" Arbor Diam, 0.258" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2" High, SPCT 3125.. Insert Compatibility, Series KSSM
Item #: 73005878
Brand: Kennametal
Model #: 1229081
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | SPCT 3125.. |
| Series | KSSM |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2580 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | KSSR |
| Number of Flutes | 10 |
| Keyway Width (Decimal Inch) | 0.5200 |
| Maximum RPM | 18600 |
| Pitch | Fine |
