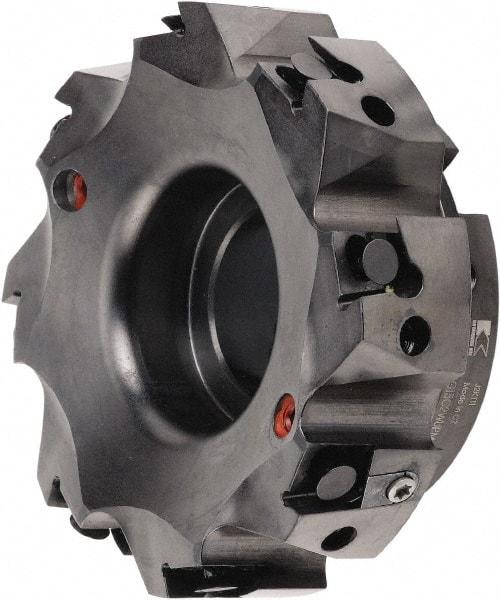

Kennametal - 8 Inserts, 101.6mm Cut Diam, 1-1/4" Arbor Diam, 3/8" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, BGHX 15L5... Insert Compatibility, Series Fix-Perfect
Item #: 73005936
Brand: Kennametal
Model #: 1805716
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 44.45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | BGHX 15L5... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Clamp |
| Cutter Style | PM |
| Number of Flutes | 8 |
| Hub Diameter (mm) | 69.20 |
| Hub Diameter (Decimal Inch) | 2.7244 |
| Maximum Body Diameter (Decimal Inch) | 3.9134 |
| Number of Adjustable Pockets | 2 |
| Maximum RPM | 12500 |
| Complete Insert Compatibility | BGHX 15L5PC.R.. |
