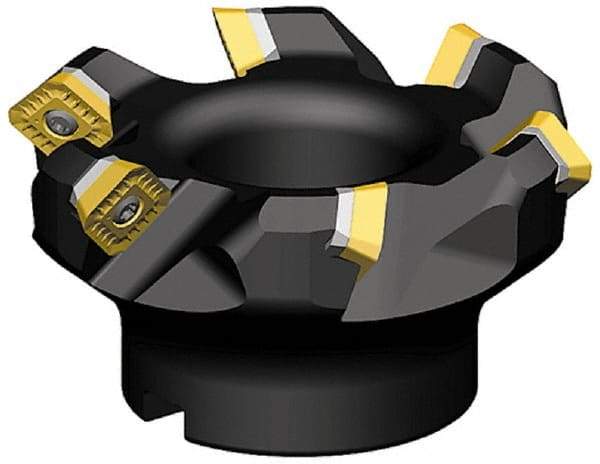

Kennametal - 124.97mm Cut Diam, 1" Arbor Hole, 6.6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, SEKT 1404... Insert, Right Hand Cut, 6 Flutes, Series KSSM
Item #: 73005985
Brand: Kennametal
Model #: 1817934
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 124.97 |
| Cutting Diameter (Decimal Inch) | 4.9200 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | SEKT 1404... |
| Series | KSSM |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | KSSISR |
| Number of Flutes | 6 |
| Keyway Width (Decimal Inch) | 0.6400 |
| Maximum Body Diameter (Decimal Inch) | 5.4600 |
| Maximum RPM | 14400 |
| Cutting Direction | Right Hand |
| Pitch | Coarse |
