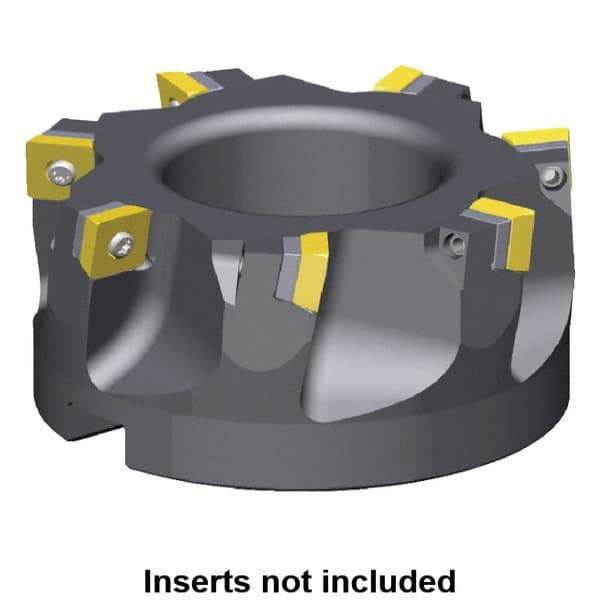

Kennametal - 5 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 9.17mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, SDET 1204.. Insert Compatibility, Series KSSM
Item #: 73008559
Brand: Kennametal
Model #: 1926933
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | SDET 1204.. |
| Series | KSSM |
| Maximum Depth of Cut (mm) | 9.17 |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 50.00 |
| Hub Diameter (Decimal Inch) | 1.9685 |
| Maximum Body Diameter (Decimal Inch) | 2.4075 |
| Maximum RPM | 18300 |
| Complete Insert Compatibility | SDET 1204PDERGB |
