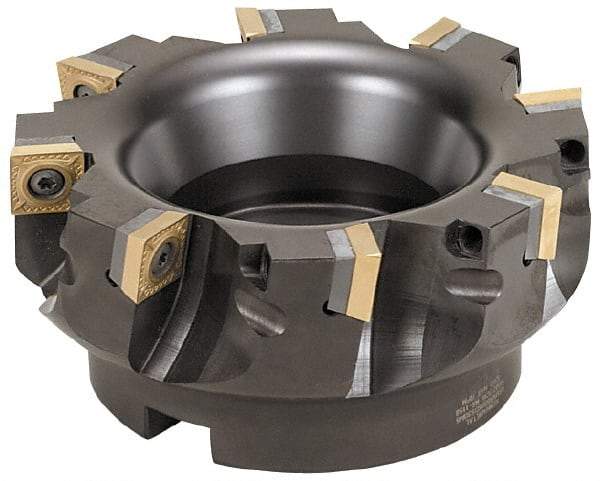

Kennametal - 12 Inserts, 8" Cut Diam, 2-1/2" Arbor Diam, 0.361" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2.38" High, SD.T 43.. Insert Compatibility, Series KSSM
Item #: 73008633
Brand: Kennametal
Model #: 1025134
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 8 |
| Cutting Diameter (Decimal Inch) | 8.0000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 2.3800 |
| Insert Compatibility | SD.T 43.. |
| Series | KSSM |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3610 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | KSSISR |
| Number of Flutes | 12 |
| Keyway Width (Decimal Inch) | 1.0100 |
| Maximum RPM | 10230 |
| Pitch | Medium |
| Complete Insert Compatibility | SDCW 433PDSR8GN; SDCW 43PDSR8GN; SDPT 43PDER8GB2; SDPT 43PDSR8GB2 |
