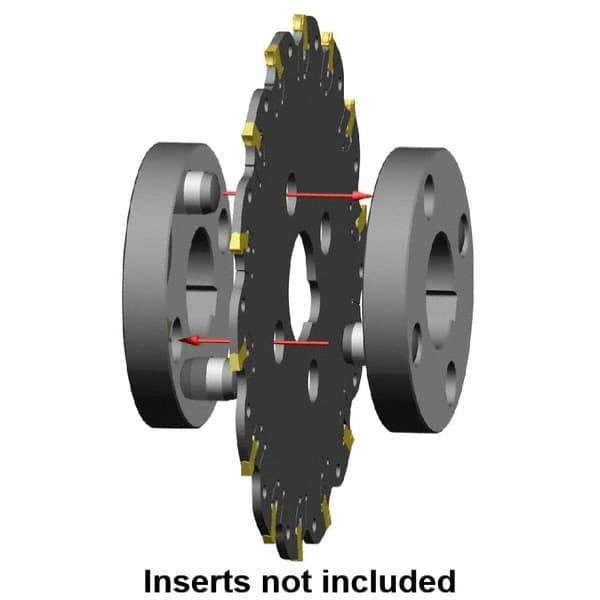

Kennametal - Arbor Hole Connection, 1/16" Cutting Width, 1-3/8" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole Diam, 11 Tooth Indexable Slotting Cutter - KVNS Toolholder, OD 1063.. Insert
Item #: 73009508
Brand: Kennametal
Model #: 1247738
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (Decimal Inch) | 1.3750 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 11 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | OD 1063.. |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 2600 |
| Minimum Cutting Width (Decimal Inch) | 0.0630 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Radius | No |
| Rake | Neutral |
| Cutter Body Width (Decimal Inch) | 0.0510 |
| Complete Insert Compatibility1 | OD 1063__ |
