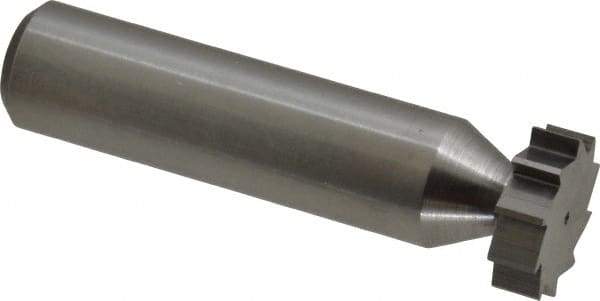

Made in USA - 5/8" Diam x 3/16" Face Width, Solid Carbide, 10 Teeth, Shank Connection Woodruff Keyseat Cutter - Uncoated, 2-3/16" OAL x 1/2" Shank, Straight Teeth, ANSI 605, Old Standard 61
Item #: 73055618
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Old Standard Number | 61 |
| American Standard Number (ANSI) | 605 |
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Width (Inch) | 3/16 |
| Cutting Width (Decimal Inch) | 0.1875 |
| Tooth Configuration | Straight |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 2-3/16 |
| Number of Teeth | 10 |
| Cutting Dia. Oversized for Resharpening | No |
| Weldon Flat | No |
