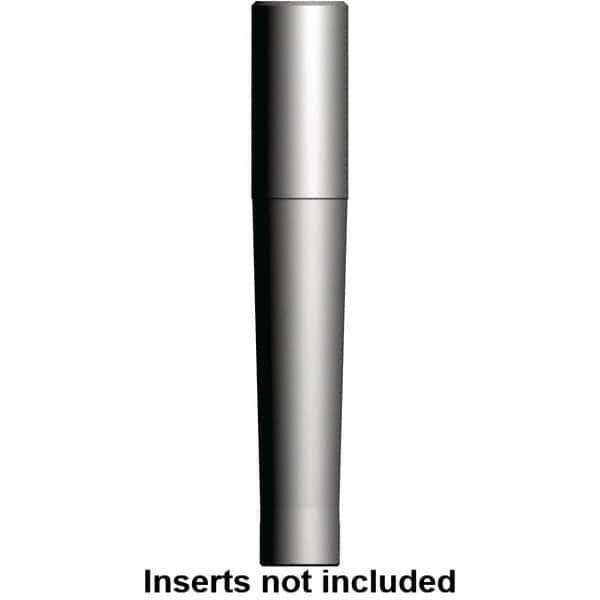

Kennametal - 1-1/4" Straight Shank Milling Tip Insert Holder & Shank - 6" Projection, 1.14" Neck Diam, M16 Neck Thread, 1.141" Nose Diam, 8.268" OAL, Tungsten Alloy M-29 Tool Holder
Item #: 73752057
Brand: Kennametal
Model #: 5672836
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | None |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Projection (Decimal Inch) | 6.0000 |
| Neck Diameter (Decimal Inch) | 1.1400 |
| Neck Thread Size | M16 |
| Nose Diameter (Decimal Inch) | 1.1410 |
| Toolholder Material | Tungsten Alloy |
| Overall Length (Decimal Inch) | 8.2680 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 6.0000 |
| Extension Length (Decimal Inch) | 6.0000 |
| Maximum Diameter (Decimal Inch) | 1.2500 |
| Shank Shape | Straight |
| Thread Size Connection to Shank | M16 |
| Toolholder Style | M-29 |
