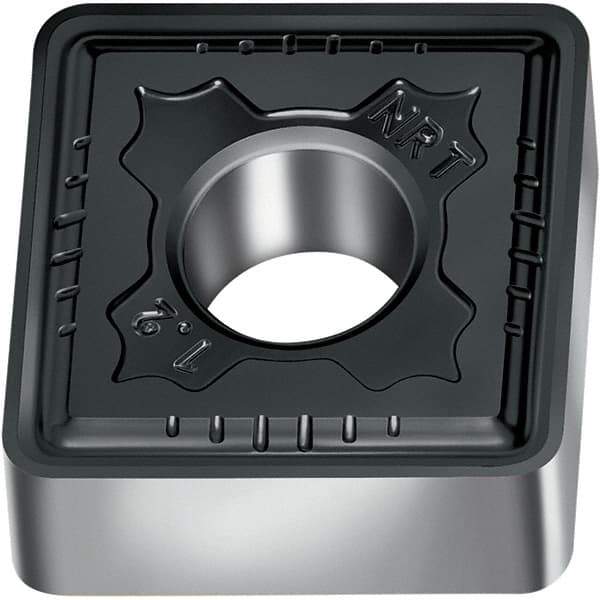

Walter - SNMG433 NRT Grade WS10 Carbide Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 73806945
Brand: Walter
Model #: 5595812
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 433 |
| Material | Carbide |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | WS10 |
| Coating | Uncoated |
| Material Grade | S10 |
| Chip Breaker | NRT |
| ISO Number | SNMG120412-NRT |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | SNMG433-NRT |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | None |
| Included Angle | 90 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 5.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Square |
