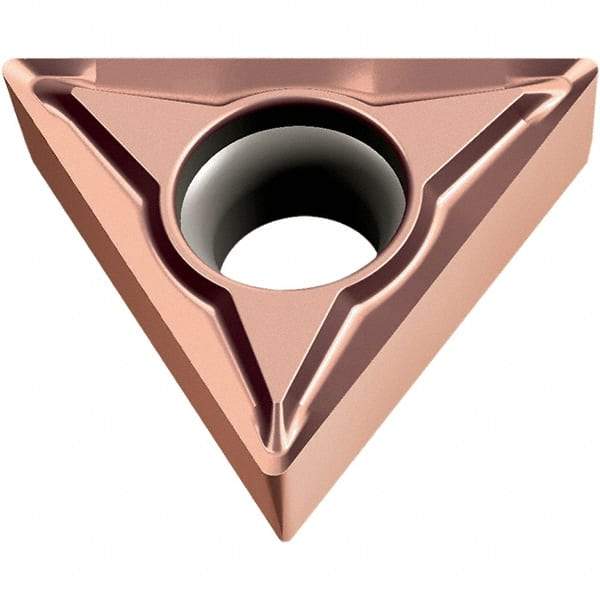

Walter - TCGT21.50 PF2 Grade WXN10 Carbide Turning Insert - TiCN Plus Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 0.004" Corner Radius
Item #: 73808859
Brand: Walter
Model #: 5337418
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 21.50 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4330 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | WXN10 |
| Coating | TiCN Plus |
| Material Grade | N10/P01/M01 |
| Chip Breaker | PF2 |
| ISO Number | TCGT110201-PF2 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TCGT2(1.5)0-PF2 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | M; P |
| Included Angle | 60 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Triangle |
