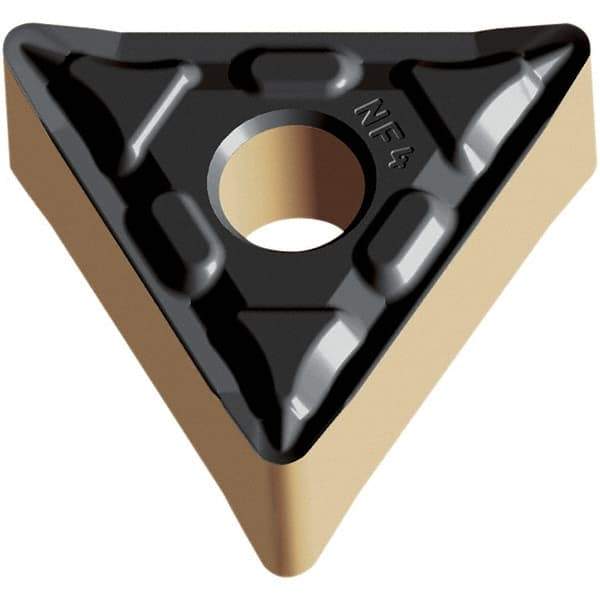

Walter - TNMG331 NF4 Grade WSM10 Carbide Turning Insert - TiAlN/Al2O3/ZrCN Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 73811291
Brand: Walter
Model #: 5847627
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 16.51 |
| Length (Decimal Inch) | 0.6500 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WSM10 |
| Coating | TiAlN/Al2O3/ZrCN |
| Material Grade | M10/S10/P20 |
| Chip Breaker | NF4 |
| ISO Number | TNMG160404-NF4 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TNMG331-NF4 |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | P |
| Included Angle | 60 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 0.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Triangle |
