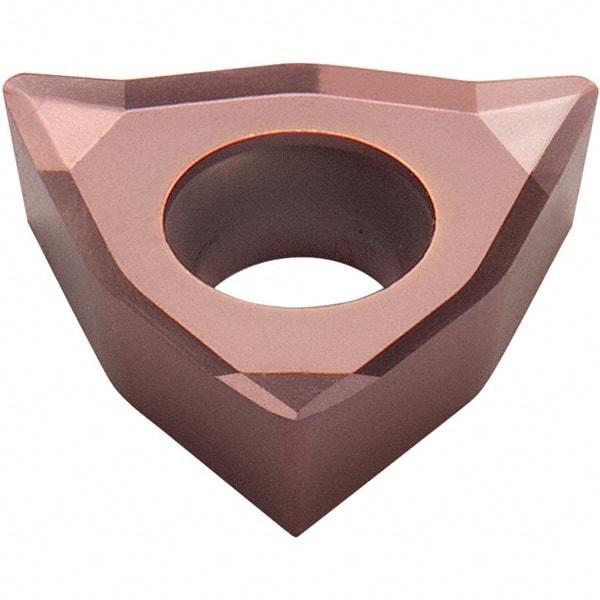

Walter - WCGT32.51 PM2 Grade WK1 Carbide Turning Insert - Uncoated, 80° Trigon, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 73815342
Brand: Walter
Model #: 5024971
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCGT |
| Insert Size | 32.51 |
| Material | Carbide |
| Length (mm) | 6.50 |
| Length (Decimal Inch) | 0.2560 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | WK1 |
| Coating | Uncoated |
| Material Grade | N10/S10 |
| Chip Breaker | PM2 |
| ISO Number | WCGT06T304-PM2 |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | WCGT3(2.5)1-PM2 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S |
| Included Angle | 80 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Trigon |
