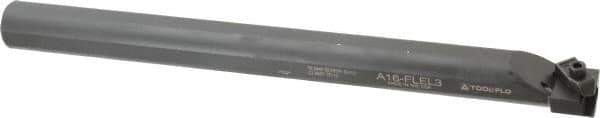

Tool-Flo - Internal Thread, Left Hand Cut, 1" Shank Width x 1" Shank Height Indexable Threading Toolholder - 12" OAL, FL 3R Insert Compatibility, A16 Toolholder, Series Flo-Lock
Item #: 74094467
Brand: Tool-Flo
Model #: 96401616
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (Inch) | 12 |
| Insert Compatibility | FL 3R |
| Series | Flo-Lock |
| Toolholder Style | A16 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.6880 |
| Minimum Bore Diameter (Decimal Inch) | 1.3750 |
