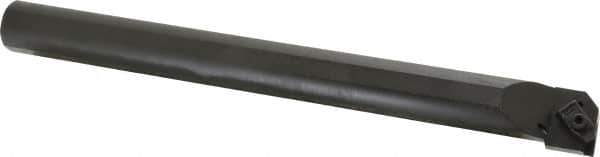

Tool-Flo - Internal Thread, Left Hand Cut, 1-1/4" Shank Width x 1-1/4" Shank Height Indexable Threading Toolholder - 14" OAL, FL 3R Insert Compatibility, A20 Toolholder, Series Flo-Lock
Item #: 74094475
Brand: Tool-Flo
Model #: 96402016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (Inch) | 14 |
| Insert Compatibility | FL 3R |
| Series | Flo-Lock |
| Toolholder Style | A20 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.8750 |
| Minimum Bore Diameter (Decimal Inch) | 1.7500 |
