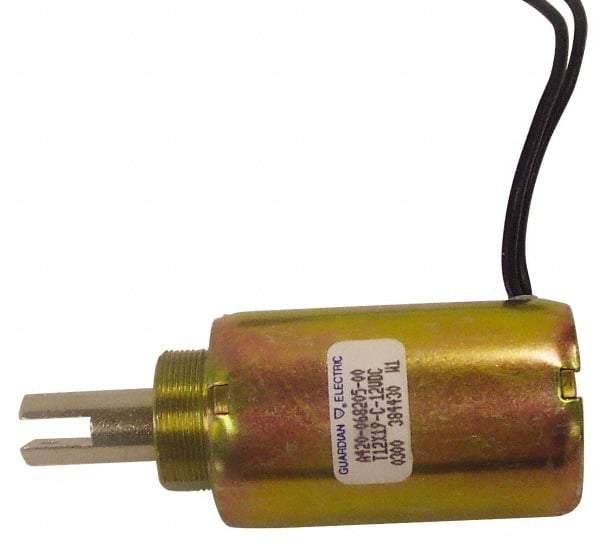

Guardian Electric - 1.29 Amp, 0.05 to 1 Inch Stroke, Pull Force, Tubular Electrical Solenoid - 12 VDC Volt, Leads, 2.04 Inch Long
Item #: 74097932
Brand: Guardian Electric
Model #: T8X16-I-12D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Solenoid Type | Tubular |
| Action | Pull |
| Maximum Stroke (Decimal Inch) | 1 |
| Minimum Stroke (Decimal Inch) | 0.0500 |
| Maximum Pull Force (oz.) | 60 |
| Minimum Pull Force (oz.) | 8 |
| Amperage | 1.29 |
| Voltage | 12 VDC |
| Terminal Type | Leads |
| Overall Length (Decimal Inch) | 2.0400 |
| Coil Resistance (Ohms) | 9.30 |
| Duty Cycle | Intermittent |
| Standards Met | RoHS Compliant 2002/95/EC; UL Recognized |
