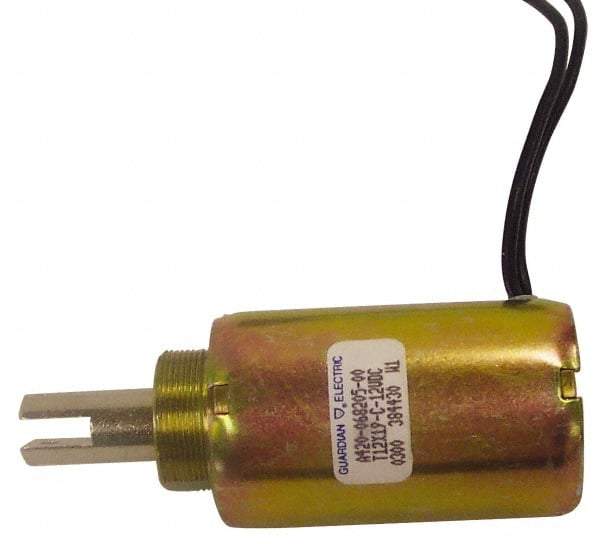

Guardian Electric - 353 Milliamp, 0.05 to 1 Inch Stroke, Push Force, Tubular Electrical Solenoid - 24 VDC Volt, Leads, 2.43 Inch Long, 2.03 Inch Extended Length
Item #: 74098088
Brand: Guardian Electric
Model #: TP12X19-C-24D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Solenoid Type | Tubular |
| Action | Push |
| Maximum Stroke (Decimal Inch) | 1 |
| Minimum Stroke (Decimal Inch) | 0.0500 |
| Amperage (mA) | 353 |
| Voltage | 24 VDC |
| Terminal Type | Leads |
| Extended Length (Decimal Inch) | 2.0300 |
| Overall Length (Decimal Inch) | 2.4300 |
| Coil Resistance (Ohms) | 68 |
| Duty Cycle | Continuous |
| Standards Met | RoHS Compliant 2002/95/EC; UL Recognized |
