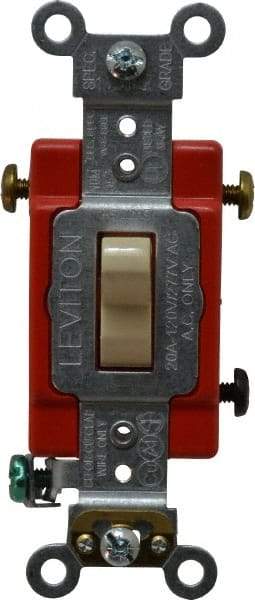

Leviton - 3 Pole, 120 to 277 VAC, 20 Amp, Industrial Grade, Toggle, Wall and Dimmer Light Switch - 1.31 Inch Wide x 4.06 Inch High
Item #: 74364266
Brand: Leviton
Model #: 1223-2I
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Switch Type | Three Way |
| Switch Operation | Toggle |
| Color | Ivory |
| Grade | Industrial |
| Number of Poles | 3 |
| Amperage | 20 |
| Voltage | 120-277 VAC |
| Number of Phases | 1 |
| Maximum Operating Temperature (F) | 149 |
| Minimum Operating Temperature (F) | -40 |
| Overall Height (Decimal Inch) | 4.0600 |
| Overall Height (mm) | 103.20 |
| Overall Width (mm) | 33.30 |
| Overall Width (Decimal Inch) | 1.3100 |
| Standards Met | ANSI C-73; CSA C22.2 No. 111 File 152105; NEMA WD-1; NEMA WD-6; NOM 057; RoHS Compliant; UL 20; UL 94 V-2; UL Federal Specification W-S-896E File E7458 |
