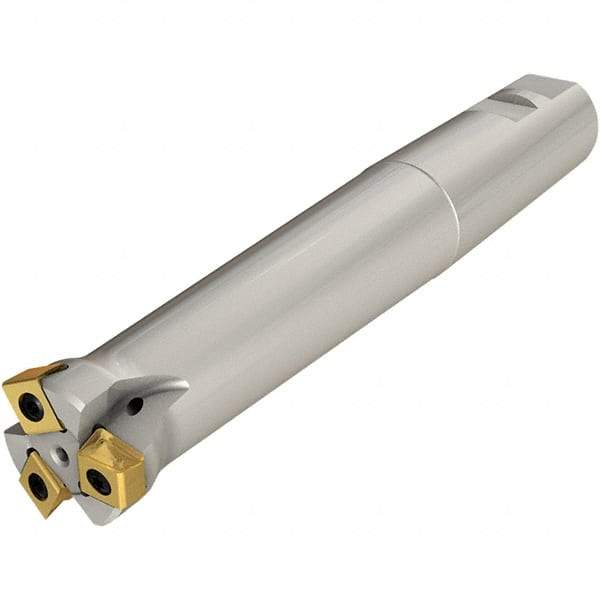

Iscar - 1-1/2" Cut Diam, 0.118" Max Depth of Cut, 1-1/4" Shank Diam, Indexable Plunge End Mill - Straight Shank, HTP LNHT 1006 Insert Style, HTP-LN10 Toolholder Style, Through Coolant, Series TangPlunge
Item #: 74408352
Brand: Iscar
Model #: 3105126
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.25 |
| Number of Cutter Inserts | 4 |
| Insert Style | HTP LNHT 1006 |
| Toolholder Style | HTP-LN10 |
| Series | TangPlunge |
| Number of Flutes | 4 |
| Overall Length/Projection (Decimal Inch) | 10.0000 |
| Head Length (Decimal Inch) | 2.0000 |
| Insert Holding Method | Clamp, Screw |
| Shank Length (Decimal Inch) | 8.0000 |
| Weldon Flat | No |
| Through Coolant | Through Coolant |
| End Mill Type | End Mill |
| Rake | Positive |
