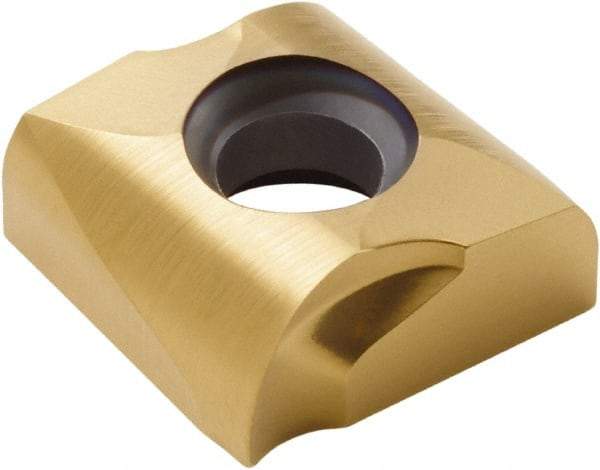

Seco - SNHQ120454 M07 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.159" Thick, 1/2" Inscribed Circle, 0.157" Corner Radius
Item #: 74408592
Brand: Seco
Model #: 14974
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHQ |
| Insert Size | 120454 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1590 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Relief Angle | 0.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | M07 |
| ISO Number | SNHQ 1204540ER2-M07 |
