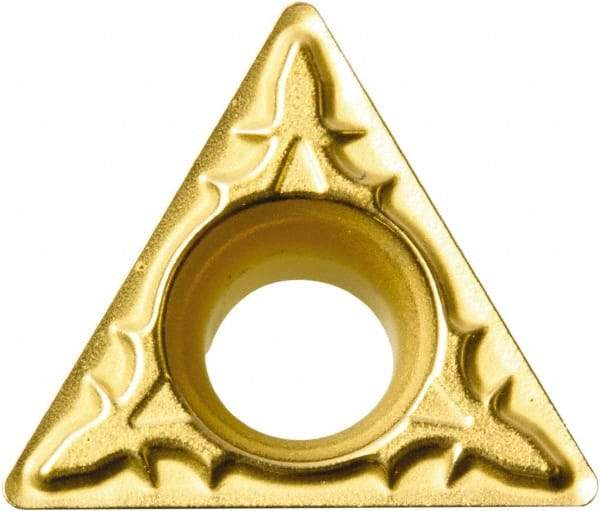

Kyocera - TPMT221 XP Grade PR930 Carbide Turning Insert - TiCN Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 74538786
Brand: Kyocera
Model #: 8815527
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 221 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Chip Breaker | XP |
| Hole Diameter (Decimal Inch) | 0.1299 |
| ISO Number | TPMT110304XP |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Triangle |
