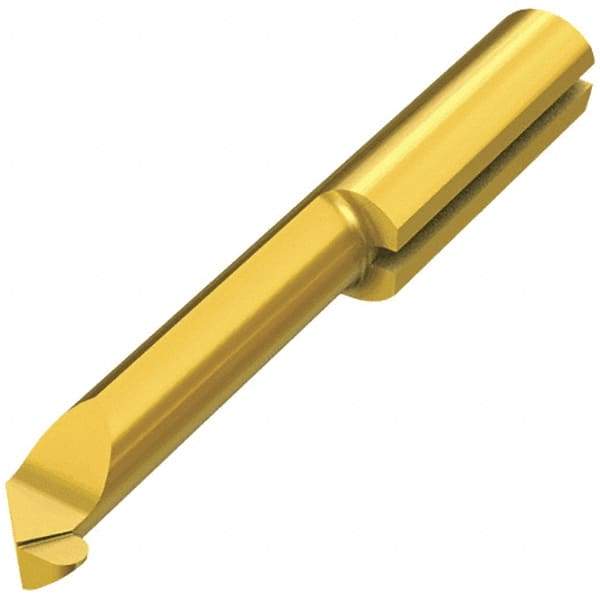

Iscar - 5mm Min Bore Diam, 19mm Max Bore Depth, 5mm Shank Diam, Profile Boring Bar - 0.0394" Corner Radius, Right Hand Cut, Solid Carbide, TiCN/TiN Finish
Item #: 74542416
Brand: Iscar
Model #: 6403531
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Profile bars are used for internal profiling of the workpiece.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.1969 |
| Minimum Bore Diameter (mm) | 5.00 |
| Maximum Bore Depth (Decimal Inch) | 0.7480 |
| Maximum Bore Depth (mm) | 19.00 |
| Material | Solid Carbide |
| Boring Bar Type | Profile Boring |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Shank Diameter (mm) | 5.0000 |
| Overall Length (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 35.00 |
| Cutting Direction | Right Hand |
| Finish/Coating | TiCN/TiN |
| Corner Radius (Decimal Inch) | 0.0394 |
| Manufacturer Grade | IC228 |
