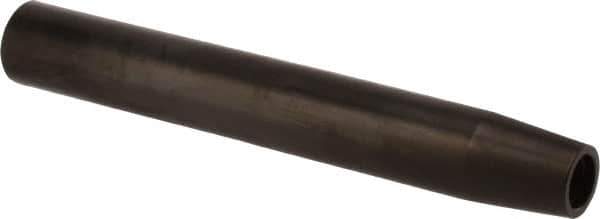

Iscar - Multimaster 3/4" 85° Shank Milling Tip Insert Holder & Shank - 0.598" Neck Diam, T10 Neck Thread, 0.217" OAL, Steel MM S-B Tool Holder
Item #: 74543802
Brand: Iscar
Model #: 3103197
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 85 Degree Shank |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Neck Diameter (Decimal Inch) | 0.5980 |
| Neck Thread Size | T10 |
| Toolholder Material | Steel |
| Overall Length (Decimal Inch) | 0.2170 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.0000 |
| Effective Length (Decimal Inch) | 0.8800 |
| Shank Shape | Straight |
| Toolholder Style | MM S-B |
