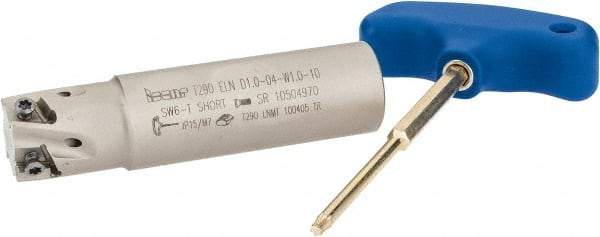

Iscar - 1" Cut Diam, 0.394" Max Depth of Cut, 1" Shank Diam, 4" OAL, Indexable Square Shoulder End Mill - T290 LN.T 1004 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series SumoMill
Item #: 74593195
Brand: Iscar
Model #: 3105342
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 90 |
| Series | SumoMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | T290 ELN-10 |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.2200 |
| Weldon Flat | Yes |
| Insert Compatibility | T290 LN.T 1004 |
| Shank Length (Decimal Inch) | 2.7800 |
