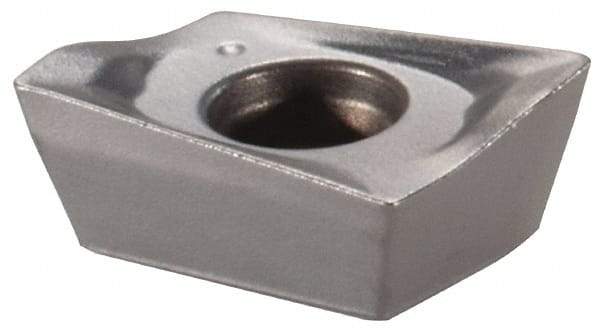

Ingersoll Cutting Tools - AOMT060202 Grade IN1030 Carbide Milling Insert - TiCN Finish, 0.103" Thick, 0.008" Corner Radius
Item #: 74631268
Brand: Ingersoll Cutting Tools
Model #: 5840533
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | AOMT |
| Insert Size | 060202 |
| Material | Carbide |
| Material Grade | C1/C2/C6 |
| Manufacturer's Grade | IN1030 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.1660 |
| Length (Decimal Inch) | 0.2280 |
| Thickness (Decimal Inch) | 0.1030 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | AOMT060202R IN1030 |
