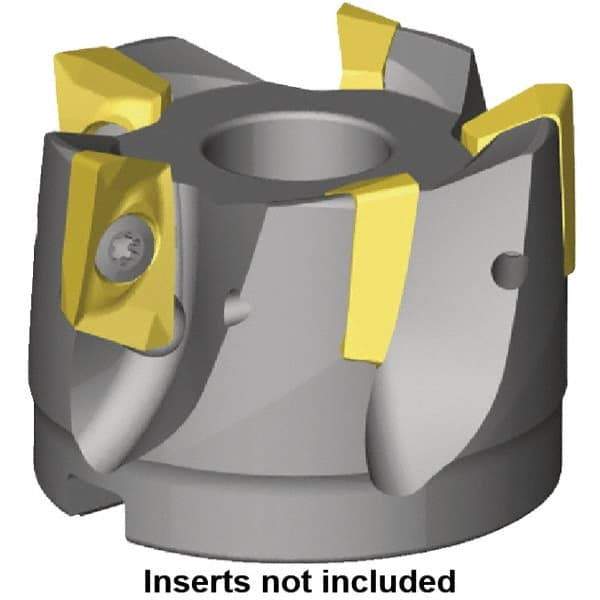

Kennametal - 10 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 14.2mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, ED.T 1404.. Insert Compatibility, Through Coolant, Series Mill 1-14
Item #: 74827460
Brand: Kennametal
Model #: 2623935
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | ED.T 1404.. |
| Series | Mill 1-14 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 14.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.5591 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | Mill 1 |
| Number of Flutes | 10 |
| Hub Diameter (mm) | 80.00 |
| Hub Diameter (Decimal Inch) | 3.1496 |
| Maximum Body Diameter (Decimal Inch) | 3.8760 |
| Maximum RPM | 16800 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Complete Insert Compatibility | ED.T 1404..PD.R.. |
