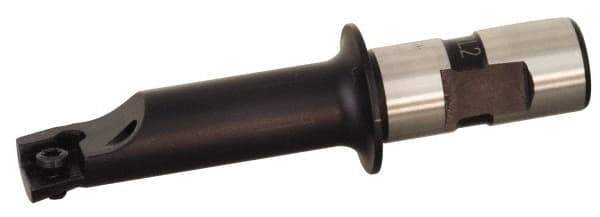

Kennametal - 16mm Min Bore Diam, 90mm OAL, 16mm Shank Diam, SVUBB2 Indexable Boring Bar - 55mm Max Bore Depth, CP.. Insert
Item #: 74837899
Brand: Kennametal
Model #: 1522069
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | SVUBB2 |
| Series | Romicron |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Maximum Bore Depth (mm) | 55.00 |
| Maximum Bore Depth (Decimal Inch) | 2.1654 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Compatibility | CP.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Maximum Bore Diameter (mm) | 19.50 |
| Maximum Bore Diameter (Decimal Inch) | 0.7677 |
| Complete Insert Compatibility | CP.. 0602..; CP.. 21.5.. |
