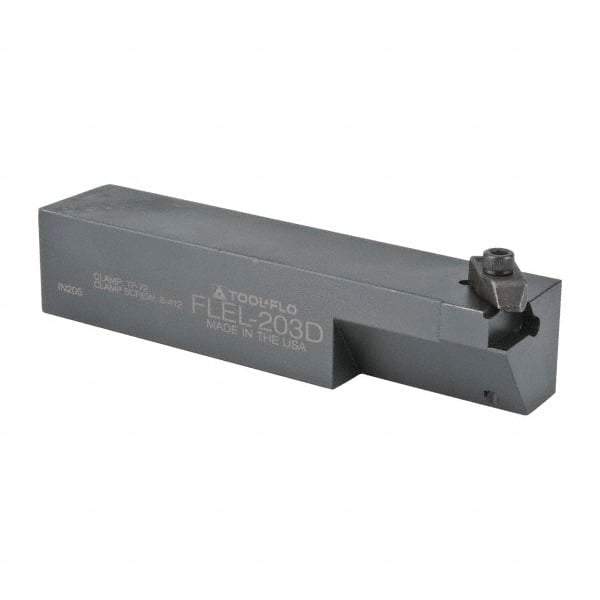

Tool-Flo - External Thread, Left Hand Cut, 1-1/4" Shank Width x 1-1/4" Shank Height Indexable Threading Toolholder - 6" OAL, FL 3R Insert Compatibility, FLE Toolholder, Series FLEL
Item #: 75000844
Brand: Tool-Flo
Model #: 93002016D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Insert Compatibility | FL 3R |
| Series | FLEL |
| Toolholder Style | FLE |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Head Length (Inch) | 2 |
| Shank Length (Inch) | 6 |
| Shank Length (Decimal Inch) | 6.0000 |
