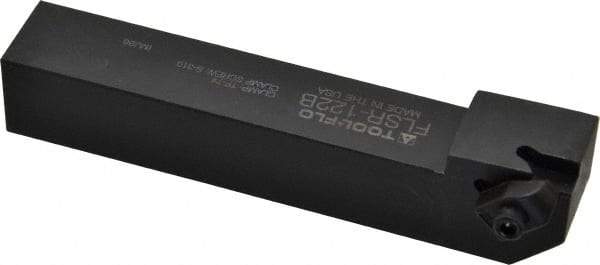

Tool-Flo - External Thread, Right Hand Cut, 3/4" Shank Width x 3/4" Shank Height Indexable Threading Toolholder - 4-1/2" OAL, FL 2R Insert Compatibility, FLS Toolholder, Series FLSR
Item #: 75001354
Brand: Tool-Flo
Model #: 93401208B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Insert Compatibility | FL 2R |
| Series | FLSR |
| Toolholder Style | FLS |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1400 |
| Shank Length (Inch) | 4-1/2 |
| Shank Length (Decimal Inch) | 4.5000 |
