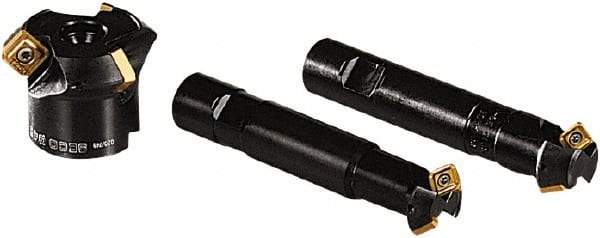

Seco - 45° Lead Angle, 39mm Max Cut Diam, 25mm Min Cut Diam, 7mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, SPMX 12T3.. Insert Style, 130mm Overall Length, Straight Shank
Item #: 75237602
Brand: Seco
Model #: 02623
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.9843 |
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 39.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5354 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 45 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Insert Style | SPMX 12T3.. |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Maximum Depth of Cut (mm) | 7.00 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | R215.49 |
| Weldon Flat | Yes |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Shank Length (mm) | 90.00 |
| Shank Length (Decimal Inch) | 3.5433 |
| Maximum RPM | 16900 |
